HiFiMuse

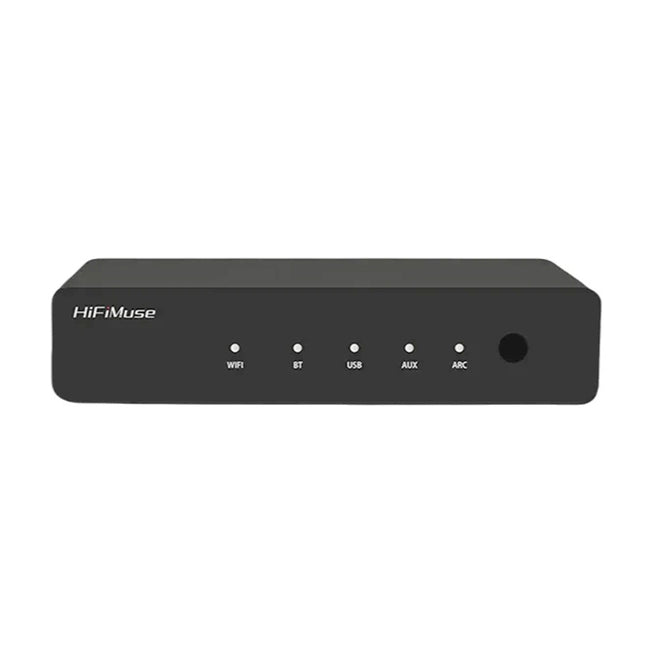

Note: The power plug is European gauge by default. Outlets and voltages vary internationally and an adapter or converter may be required to use this product at your destination. Use the high-end ES9023 chip of the American ESS company Power supply noise as low as 1uVrms using a dedicated high-performance DAC power supply chip 120Wx2CH@4ohm, 60Wx2CH@8ohm full digital amplifier. Streaming music via network without distance limitation or Bluetooth5.0 up to 15 meters. Bluetooth for true high resolution music. Spotify connect, Airplay, Qplay, DLNA, UPnP streaming protocols supported. Support streaming source from online services, smart device memory, USB pen drive, NAS, Bluetooth and line in. Multiroom and multizone streaming enabled by mutiple units connected in same network. All music sources can be restreamed in sync to other models from us. Airplay, Spotify Connect, QPlay, DLNA, UPnP protocol and 3rd party app compatible. High quality music streaming support, sample rate decoding up to 24bit, 192kHz. Sportify, Deezer, Tidal, Qobuz, Amazon Music, Napster, Pandora, Internet Radio, iHeartRadio, TuneIn, QQMusic, lots of online streaming services integrated to use in the app. Free iOS and Android app available. Free global online update for new features. Full function remote controller to use without cellphone. Line input for more possible external audio input EQ adjustment via app or remote controller. Preset playlist is availble and short buttons on remote controller for one button play. - iTunes working with PC streaming.

Read more less

Product sellpoints:1.Bluetooth Connectivity:Seamless wireless audio streaming with Bluetooth, enhancing your home audio system. 2.Multiroom Compatibility:Expand your audio experience with multiroom capabilities, perfect for a smart speaker setup. 3.Portable Design:Lightweight and compact, this wireless audio device is your perfect portable speaker.  4.Universal 3.5mm Jack:Effortless connectivity with a universal 3.5mm jack, compatible with various audio devices. 5.Enhanced Sound Quality:The HiFiMuse R20 delivers high-fidelity sound, elevating your listening experience. Product Parameters1.Newest Firmware Version: 4.6.415145.35;2.Bluetooth: 5.0 SBC/AAC,15M, BT Receiver;3.Ethernet: Single 10/100M RJ45;4.Streaming Protocols: AirPlay, Spotify connect, DLNA, UPnP, Qplay;5.Power input: 5V/1A Type-C input6.Audio input: AnalogLine In x1/2 Vrms(3.5mm mini jack)                       Digital Type-CInput x 17.Audio Output: Analog Line Out x1/2 Vrms(3.5mm mini jack)                          Digital Optical Output x 1 8.USB Host: 2.0, For USB pen drive/stick,1000 songs limited 9.Music Format: FLAC/MP3/AAC/AAC+/ALAC/APE/WAV 10.Sample Rate:Decoding Up to 24bit/192kHz                          0utput 44.1kHz/16bit, CD quality 11.Frequency Response: 20Hz-20kHz 12.THD+N: 0.03% 13.SNR: 91dB 14.Local Storage:Mobile device memory, NAS, USB pen drive/Stick 15.Weight:300g 16.Dimensions: 140x95x30mm 17.Working temperature:0~40°C Packages Included： 1x Main unit 1x Power adapter 1x User's Manual 1x optical fiber cable 1x 2-1RCA cable 1x Remote control 2x Antenna

Read more less

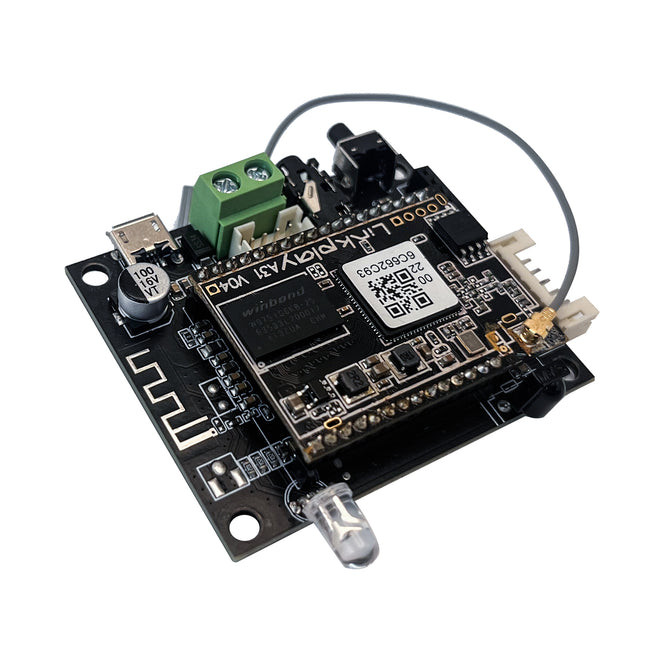

Product sellpoints:1.Wireless SpeakerHigh - Fidelity AudioHigh-Fidelity Audio with ESS9023:Experience crystal-clear sound with the ESS9023 chip, ensuring high-fidelity audio for audiophiles. 2.Wireless Multi-room Setup:Seamlessly stream audio across multiple rooms with wireless multi-room setup, enhancing your home audio experience. 3.Bluetooth 5.0 Streaming:Enjoy stable and high-speed Bluetooth 5.0 streaming, connecting effortlessly to your devices. 4.Supports Airplay & DLNA:Effortlessly stream audio from your devices with Airplay and DLNA support, enhancing your smart audio experience. 5.I2S/Analog Output:Versatile audio output with I2S and analog options, compatible with various audio systems. Parameter information:1.Wireless network: IEEE802.11 b/g/n 2.4G 2.Bluetooth:5.0 SBC/AAC 3.Power Input :5V-1A/2 pin connector  5V-1A micro USB input 4.Audio output:Analog 3.5mm/4 pin connector  Digital12S,SPDIF(44.1KHz) 5.Frequency response: 20Hz to 20kHz 6.SNR:100dB @ 0dBFS, 1KHZ 7.THD+N：0.03% @ OdBFS, 1KHZ 8.Music Format：FLAC/MP3/AAC/AAC+/ALAC/APE/WAV 9.Decoding：Up to 24bit/192kHz 10.Protocols：AirPlay, DLNA, UPnP, Spotify Connect, Qplay 11.NAS Support：NAS with DLNA support 12.Dimensions：55*45*15mm 13.Accessory：4Pin 220mm PH2.0 Cable Pin 220mm PH2.0 Cable        2Pin 220mm Power Cable    User Manual

Read more less

Product Parameters:1.Configuration/Model：Q7 2.Color:Black 3.Body Material:Aluminum Panel + lron Case 4.Audio DAC: ES9039Q2M*2 5.Audio Processor:Second generation XMOS interface 8-core processor XU208 Amplifier 6.Amplifier:JRC5535*2  OPA1642*1 7.Power Supply:Square Transformer 8.Bluetooth Audio Input:Qualcomm Qcc3040 Bluetooth Module / Bluetooth version:5.2  SupportS APTX/APTX-LL/APTX HD/SBC/AAC Bluetooth audio protocols 9.USB AudioCompatibility: Windows 7-11,Mac / Android, ios 10.USB-B DAC Inputs:Supports up to stereo DSD512    PCM384KHZ 32Bit 11.Optical AudioInput:Supports up to PCM 192KHz 24Bit 12.Coaxial Audio Input:Supports up to PCM 192KHz 24Bit 13.Analog Audio Output:"Preamp output: XLP (balanced) + RCAEarphone output: 6.35 single-ended + 4.4 balanced" 14.Control Mode.Knob control+ remote control 15.Recommended Headphone lmpedance:16-300Q/single-ended,16-6000/balanced 16.XLP Output Audio Characteristics:Output Level(Vrms):3.14Vrms@0dB   Total Harmonic Distortion (THD+N):-97dB@1khz   Noise:1uVrms    Signal-to-Noise Ratio (SNR): 120dB@1kHZ   Frequency Response:20-20kHz(±0.07dB)    Channel separation (CROSSTALK):-110dB   Dynamic Range(DNR):120dB@1kHZ 17.RCA Outputs Audio Characteristics:Output Level(Vrms):3.14Vrms@0dB  Total Harmonic Distortion(THD+N):-97dB@1kHZ    Noise:3uVrms   Signal-to-Noise Ratio (SNR):116dB@1kHZ    Frequency Response:20-20kHz(±0.06dB)    Channel separation (CROSSTALK):-108dE   Dynamic Range(DNR):116dB@1kHZ   18.Headphone Output Audio Characteristics (6.35 single-ended):Output Level(Vrms):2.9Vrms@0dB   Maximum Undistorted Power:360mW@16Q/28mW@3000 Total Harmonic Distortion(THD+N):-96dB@1kHz   Noise:3uVrms   Signal-to-Noise Ratio (SNR):116dB@1kHz   Frequency Response:20-20kHz(±0.06dB)    Channel separation (CROSSTALK):-108dB   Dynamic Range(DNR):116dB@1kHZ 19.Headphone OutputAudio Characteristics(4.4 Balanced):Output Level(Vrms):5.9Vrms@0dB   Maximum Undistorted Power:1000mW@16Q/56mW@6000Ω   Total Harmonic Distortion(THD+N):-96dB@1kHZ  Noise:1uVrms   Signal-to-noise ratio (SNR): 120dB@1kHZ  Frequency Response:20-20kHz(士0.07dB)  Channel separation (CROSSTALK): -110dB  Dynamic Range(DNR):120dB@1kHZ 20.Power input:AC 110V 50Hz/AC 220V 50Hz 21.Rated Power Consumption:15W

Read more less

Product Parameters:1. Function Support：Bluetooth 5.0, optical coaxial decoding, U diskdecoding, computer decoding, 3.5AUX input 2. Tuning mode：Support potentiometer, remote volume adjustmentBass and treble adjustment,U disk selection and standby function 3. Optical fiber coaxial decoding chip: ESS9018K2M 4. DA decoder chip: ESS9018K2M 5. Bluetooth U disk PC decoder chip ATS2825 6. USB Flash Disk Support Format : WAV/APE/FLAC/MP3 7. Amplifier: TPA3116*2 8. Optical Coaxial Sampling: Support 32bit/192kHz 9. U disk, computer, Bluetooth sampling rate: Support 16bit/48kHz 10. Output Power: 150W*2 11. Different voltage output power: 19V(80/32+32W)(4Q/more than 45+45W)24V(80/38+38W)(40/Greater than 55+55W) 12. Power Adapter: 24V/3A 13. Total Harmonic Distortion: 0.001% 14. Signal-to-Noise Ratio S/N(dB): 92dB 15. Frequency Response Range (Hz): 15Hz-25Hz 16. Input Sensitivity (mV): 500mV 17. Power Supply Range: DC12V-24V 18. Color: Classic Black

Read more less
