Description
Product Parameters:

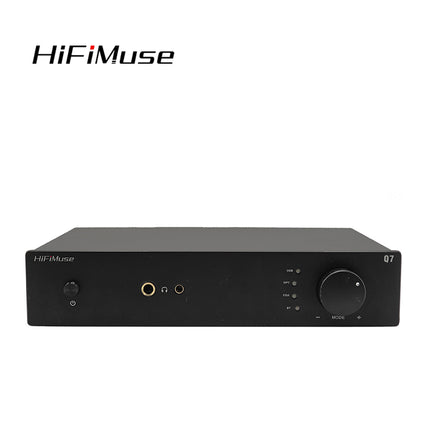

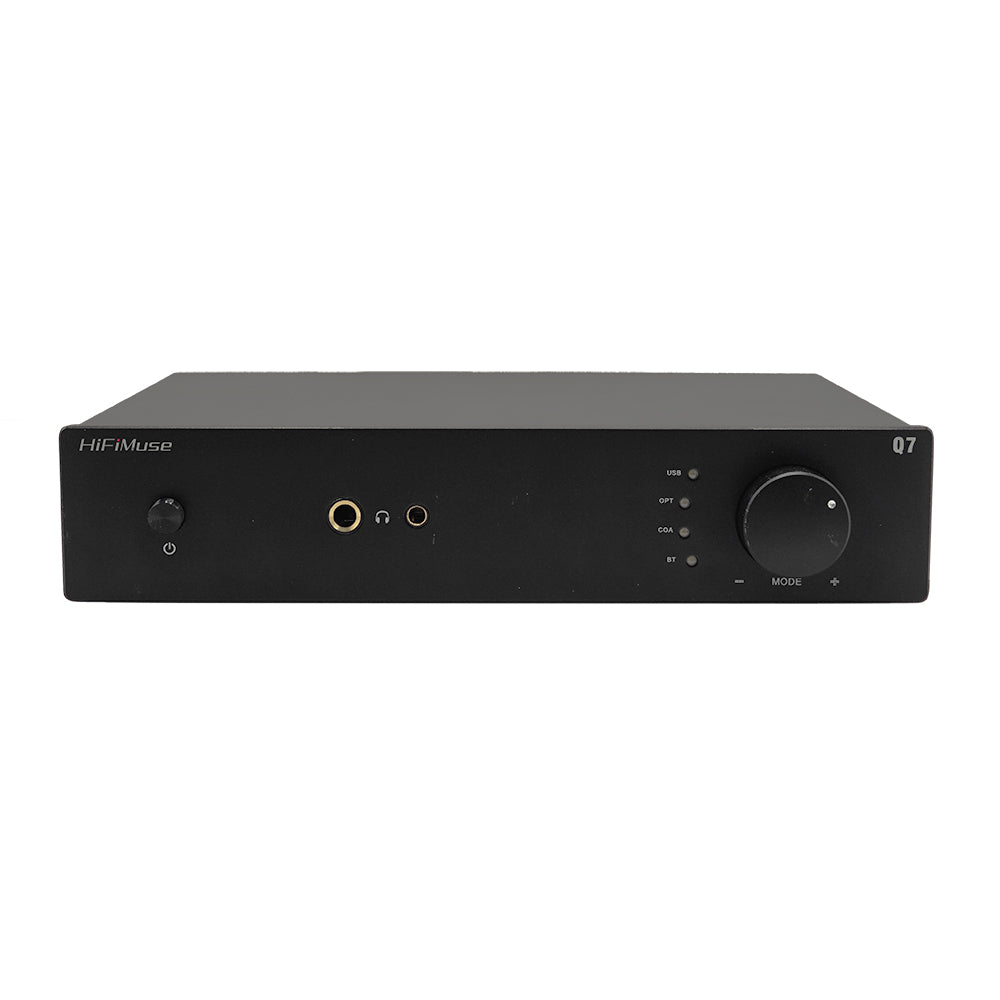

1.Configuration/Model：Q7
2.Color:Black
3.Body Material:Aluminum Panel + lron Case
4.Audio DAC: ES9039Q2M*2
5.Audio Processor:Second generation XMOS interface 8-core processor XU208 Amplifier
6.Amplifier:JRC5535*2 OPA1642*1
7.Power Supply:Square Transformer
8.Bluetooth Audio Input:Qualcomm Qcc3040 Bluetooth Module / Bluetooth version:5.2 SupportS APTX/APTX-LL/APTX HD/SBC/AAC Bluetooth audio protocols

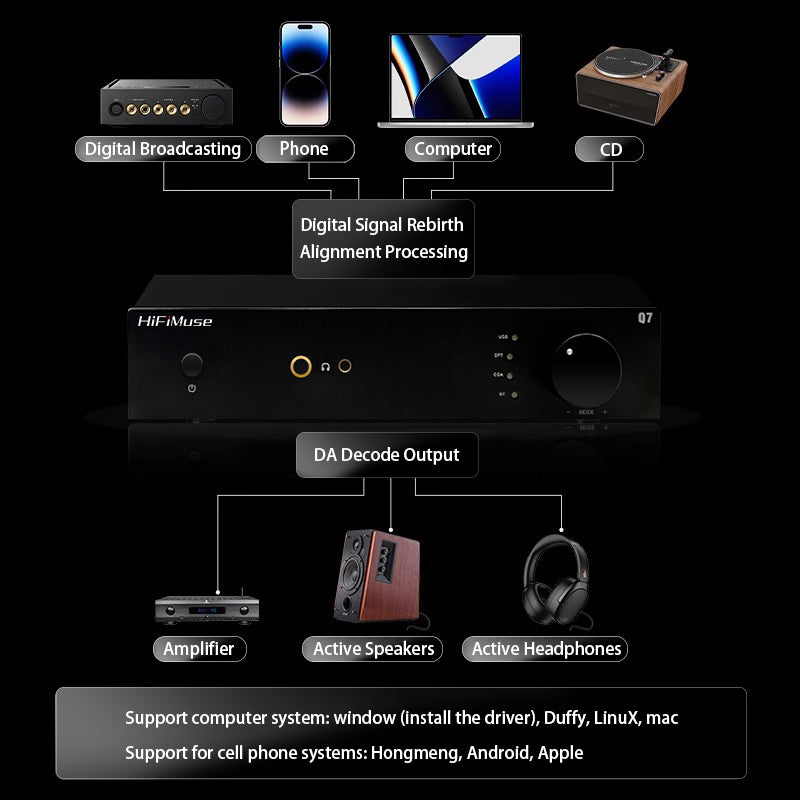

9.USB AudioCompatibility: Windows 7-11,Mac / Android, ios
10.USB-B DAC Inputs:Supports up to stereo DSD512 PCM384KHZ 32Bit
11.Optical AudioInput:Supports up to PCM 192KHz 24Bit
12.Coaxial Audio Input:Supports up to PCM 192KHz 24Bit

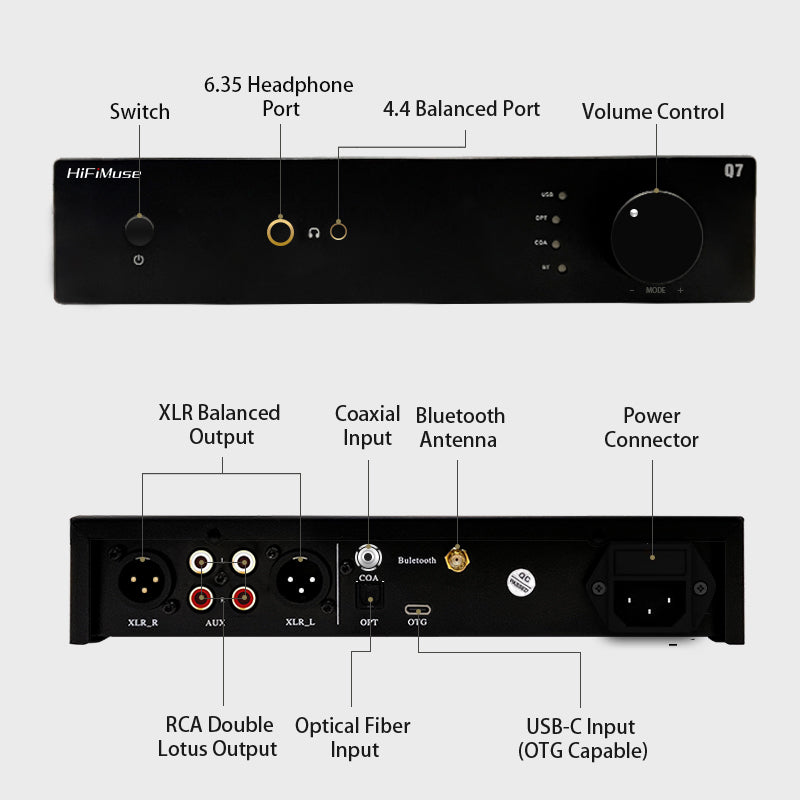

13.Analog Audio Output:"Preamp output: XLP (balanced) + RCA
Earphone output: 6.35 single-ended + 4.4 balanced"
14.Control Mode.Knob control+ remote control
15.Recommended Headphone lmpedance:16-300Q/single-ended,16-6000/balanced
16.XLP Output Audio Characteristics:Output Level(Vrms):3.14Vrms@0dB Total Harmonic Distortion (THD+N):-97dB@1khz Noise:1uVrms Signal-to-Noise Ratio (SNR): 120dB@1kHZ Frequency Response:20-20kHz(±0.07dB) Channel separation (CROSSTALK):-110dB Dynamic Range(DNR):120dB@1kHZ
17.RCA Outputs Audio Characteristics:Output Level(Vrms):3.14Vrms@0dB Total Harmonic Distortion(THD+N):-97dB@1kHZ Noise:3uVrms Signal-to-Noise Ratio (SNR):116dB@1kHZ Frequency Response:20-20kHz(±0.06dB) Channel separation (CROSSTALK):-108dE Dynamic Range(DNR):116dB@1kHZ
18.Headphone Output Audio Characteristics (6.35 single-ended):Output Level(Vrms):2.9Vrms@0dB Maximum Undistorted Power:360mW@16Q/28mW@3000 Total Harmonic Distortion(THD+N):-96dB@1kHz Noise:3uVrms Signal-to-Noise Ratio (SNR):116dB@1kHz Frequency Response:20-20kHz(±0.06dB) Channel separation (CROSSTALK):-108dB Dynamic Range(DNR):116dB@1kHZ
19.Headphone OutputAudio Characteristics(4.4 Balanced):Output Level(Vrms):5.9Vrms@0dB Maximum Undistorted Power:1000mW@16Q/56mW@6000Ω Total Harmonic Distortion(THD+N):-96dB@1kHZ Noise:1uVrms Signal-to-noise ratio (SNR): 120dB@1kHZ Frequency Response:20-20kHz(士0.07dB) Channel separation (CROSSTALK): -110dB Dynamic Range(DNR):120dB@1kHZ
20.Power input:AC 110V 50Hz/AC 220V 50Hz
21.Rated Power Consumption:15W
